2009 Gibson ES-175

Status: For pricing and hold status for this instrument, please check our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may by found here. To be notified of examples of this or any other model in the future, please contact [email protected].

Serial #: 01669748, orange oval label

Body size at lower bout: 16". Scale length: 24 3/4" Nut Width: 1 11/16"

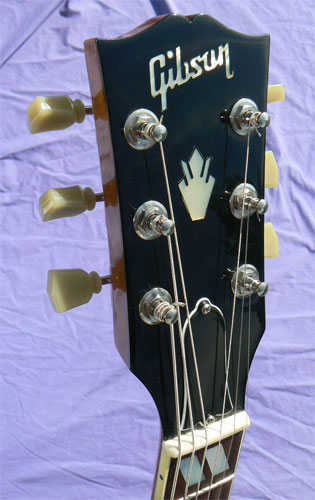

Materials: Solid mahogany neck; solid rosewood fingerboard; arched slab-cut maple top sides and back; dual-parallelogram mother of pearl fingerboard inlay and thistle peghead inlay; triple bound top, bound back.

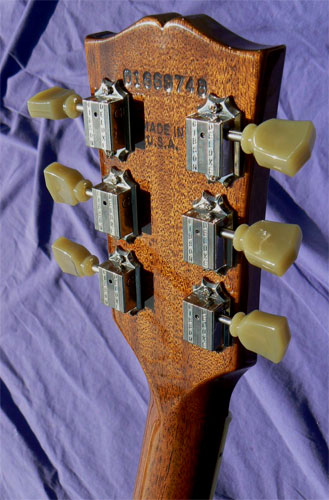

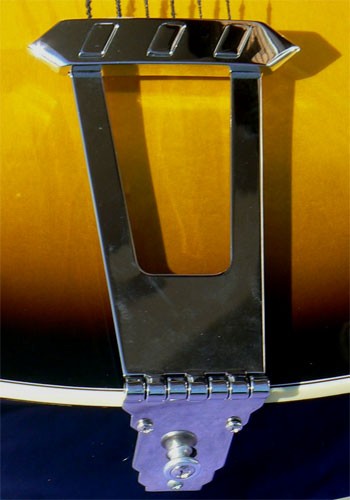

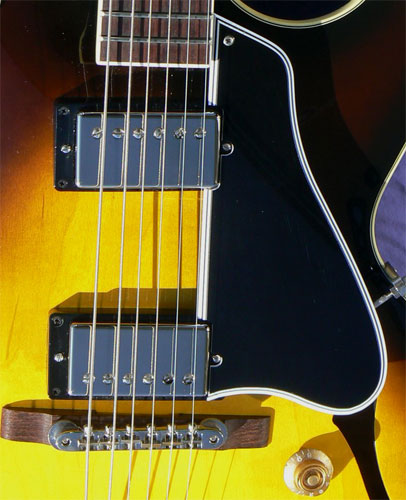

Hardware: 100% original nickel hardware, including Gibson '57 Classic PAF humbucking pickups, Gibson Deluxe single ring tulip key tuners, trapeze tailpiece with raised-parallelogram crossbar; compensated Tuneamatic bridge, beveled 5-ply pickguard; gold bell knobs, 3 way control switch.

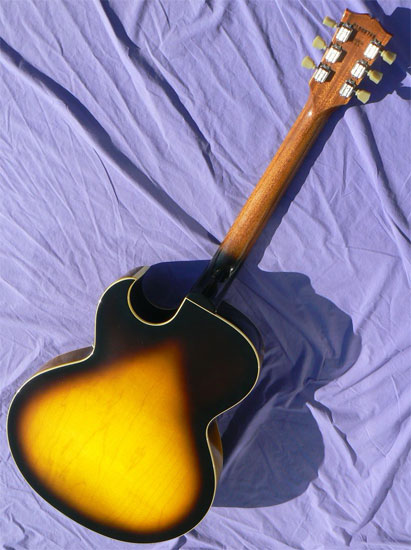

Notes: Since its introduction in 1949, the Gibson ES-175 has been the most popular jazz guitar in the world. Originally fitted with a single P-90 pickup, the 175 added a second pickup by 1951, and humbuckers by 1957. The mahogany neck is a feature of the classic models of the 50's and 60's , and produces an instrument that is distinctly lighter in weight, and notably better balanced.

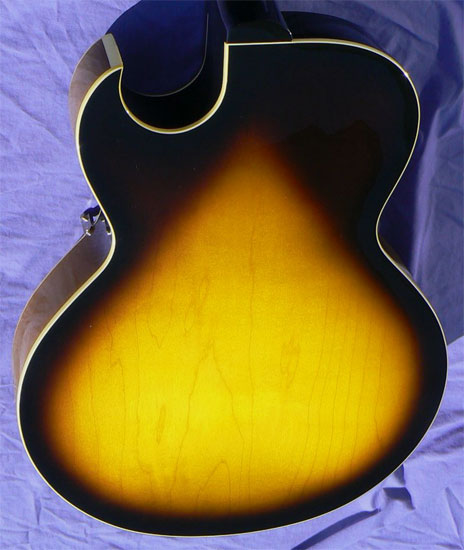

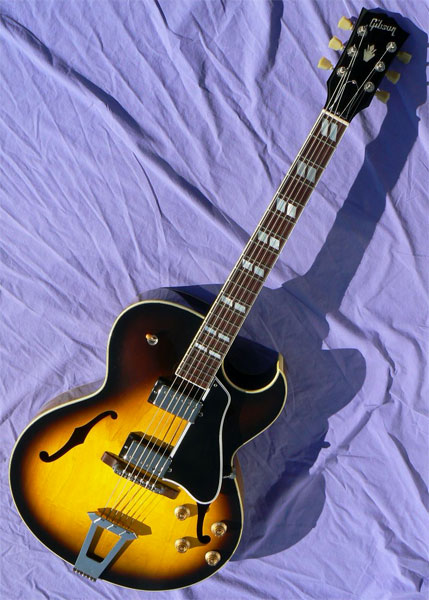

This example is in immaculate, virtually unplayed condition, all original and free of pick, buckle, thumb or fingerboard wear. The top is finished in a classic vintage sunburst, showing off the 60's style slab cut figure in the maple top and back. With pristine medium jumbo frets, the fingerboard is utterly effortless to play. The 24 3/4" scale is fast and nimble, the twin humbuckers are fat and sweet, and the 16" body is easy to cradle and substantially resistant to feedback. Supplied with original papers, including Gibson Custom Shop Certificate of Authenticity. A classic instrument in a distinguished lineage that spans a half century of hard-working guitars. One only at this price: call now.

Setup: The frets have been precision leveled, recrowned and polished as needed; trussrod tension and neck relief adjusted; bridge height adjusted; bridge compensation set; string slots at nut and bridge inspected and recut as necessary; bridge foot contour inspected and fit to top as necessary; bridge wheels and tuners lubricated; fingerboard and bridge oiled; body and neck cleaned and hand polished.

This instrument is strung with medium gauge nickel roundwound strings (.013-.056). The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 5/64" to 6/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.

Case: Original deluxe arched plush lined Gibson logo hardshell case.
