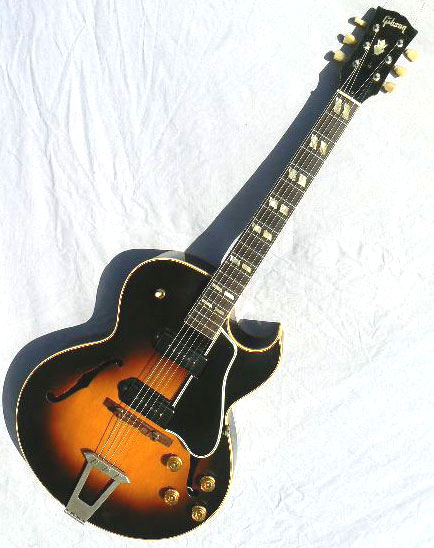

1953 Gibson ES-175D

Status: Pricing and hold status for all instruments currently available is shown on our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may by found here. To be notified of examples of this model or similar instruments in the future, please contact [email protected],. Please be specific on which instrument(s) you're looking for, and we'll be happy to contact you as soon as they become available.

SN#: A-14719 FON# Y5197-3

Body size at lower bout: 16". Scale length: 24 3/4" Nut Width: 1 11/16"

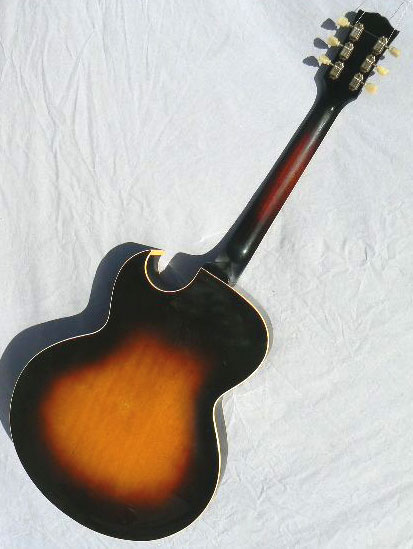

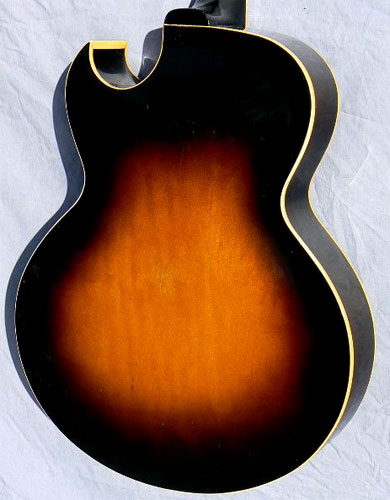

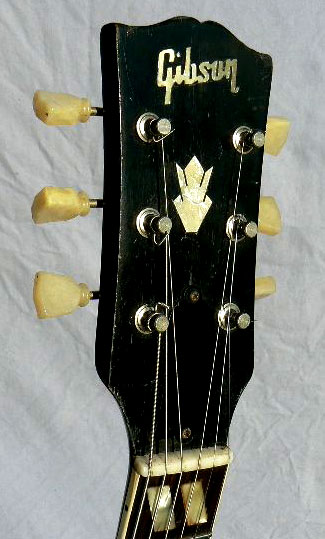

Materials: Solid mahogany neck; solid Brazilian rosewood fingerboard; arched maple top and back; dual-parallelogram mother of pearl fingerboard inlay and crown peghead inlay; triple bound top, bound back.

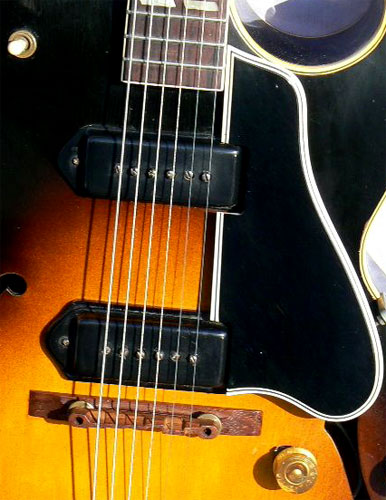

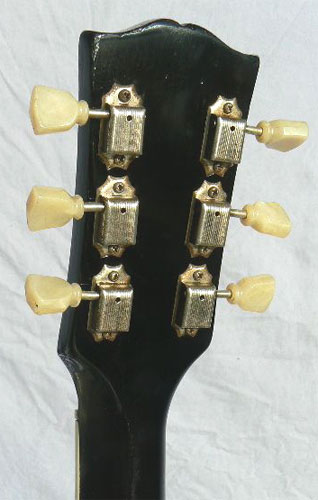

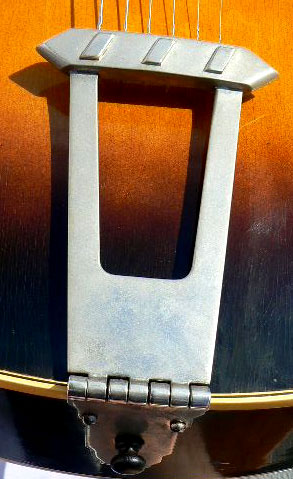

Hardware: Original hardware includes twin P-90 pickups and electonics, nickel Kluson Deluxe single-line, single ring tuners, beveled 5 ply pickguard, adjustable compensated Brazilian rosewood bridge, raised parallelogram trapeze tailpiece, 3 way toggle switch, gold barrel control knobs.

Notes: Introduced in 1948, the Gibson ES-175 quickly became the most popular jazz guitar ever made. Fast, clean and road-ready, the 175 has been the workhorse of the touring player and studio from Joe Pass to Pat Metheny. The legendary P-90 pickup provides a bright, rich tone unduplicated before or since, but was available on this model only until 1957. The twin pickup ES-175D debuted in 1953, and this example is from the very first year for this version. Lightweight and compact, the 16" body sits easily in the lap, and the 24 3/4" scale makes stretch chords and fast runs a pleasure.

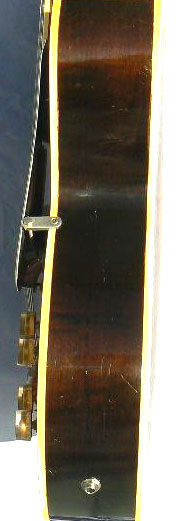

The instrument is in wonderful shape, without pick, buckle, or fingerboard wear, with a handsome original dark Cremona finish. The twin P-90 pickups are clear and detailed, with extended frequency range unknown in conventional humbuckers. At just 5lb. 15oz. the instrument is pounds lighter than modern versions, easier to hold, and markedly more resonant. With smooth low action over fine original fretwork, the guitar plays exquisitely, with a gentle C profile neck recently relacquered. Apart from a nearly invisible older headstock repair, and a soundly resealed crack terminating near the output jack, the instrument is otherwise without repairs, and only a single amber knob has been replaced in the otherwise all-original hardware. Complete with its original brown Lifton hardshell case, this beauty is a best buy for the working player, and an outstanding example of the ultimate journeyman's jazz guitar.

Setup: The frets have been precision leveled, recrowned and polished; trussrod tension and neck relief adjusted; bridge height adjusted; bridge compensation set; string slots at nut and bridge inspected and recut as necessary; bridge foot contour inspected and fit to top as necessary; bridge wheels and tuners lubricated; fingerboard and bridge oiled; body and neck cleaned and hand polished.

This instrument is strung with medium gauge nickel wound strings (.012-.054). The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 5/64" to 6/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.

Case: Deluxe original brown Lifton arched hardshell case.
